Nicosia

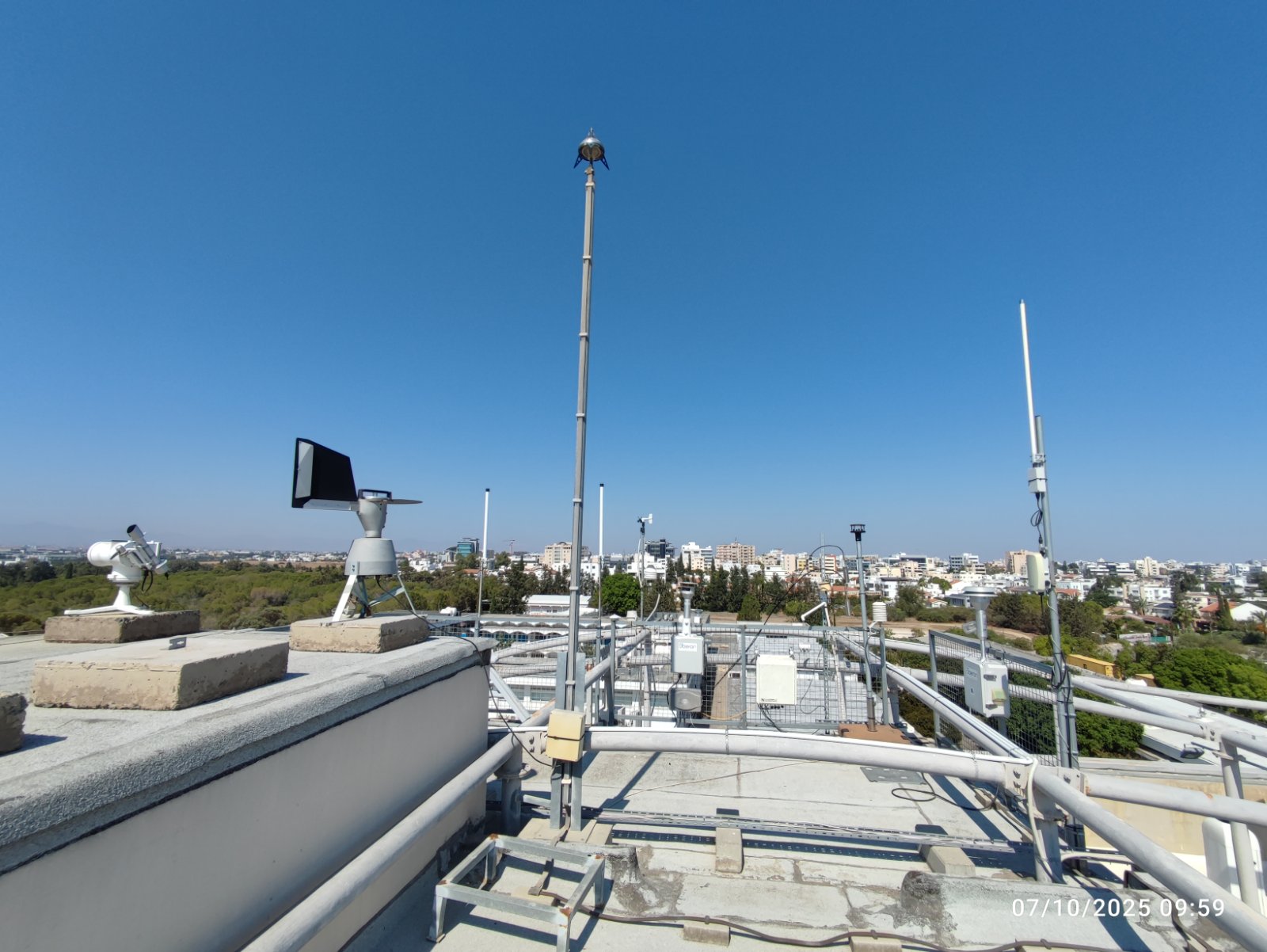

The Cyprus Atmospheric Observatory station in Nicosia currently consists of two containers on the grounds of the Cyprus Institute at the Athalassa campus, in Aglantzia. The containers are stacked on top of each other, with sampling instruments located in the top container.

This station serves two purposes to CAO: First, it is a testing ground where instruments can be developed/tested/optimized/repaired. This is necessary when adapting instruments to new platforms, such as UAVs; when instruments are going to/coming back from campaigns; when instruments are not operating up to the high standards required for research work; or when performing comparison between multiple instruments measuring the same/similar variables. The second function of this station is to operate as an air quality station, with parameters such as CO, SO2, NOX, O3, PM2.5 and PM10 concentrations being monitored constantly (Thermo 4# C series and 1405-DF TEOM instruments).

The station will be relocated on the top floor of the Climate and Atmosphere Research Centre building once construction is finalised in 2022/23.

Hosted Instruments

ACSM

Manufacturer: Aerodyne Inc

Model: Q-ACSM

Measures: PM1 chemical composition non refractive

Aethalometer

Manufacturer: Magee Scientific

Model: AE33-7

Measures: Particulate Absorption VI

Aethalometer

Manufacturer: Magee Scientific

Model: AE33-7

Measures: Particulate Absorption PM1

airmoBTX

Manufacturer: Chromatotek

Model: airmoBTX

Measures: hydrocarbons C6 and beyond

airmoVOC C2-C6

Manufacturer: Chromatotek

Model: GC 866 airmoVOC C2-C6

Measures: hydrocarbons C2 – C6

CO analyser

Manufacturer: Teledyne-API

Model: T300

Measures: CO

EasySPT200

Manufacturer: CAVAZZA ANNA Sas

Model: EasySPT200

Measures: Pollen & Fungal spores

Fine dust monitor

Manufacturer: PALAS

Model: FIDAS 200

Measures: PM concentrations

LECKEL

Manufacturer: Leckel

Model: SEQ47/50

Measures: TSP, PM2.5 & PM10

LIDAR

Manufacturer: CIMEL ELECTRONIQUE

Model: CE 376

Measures: Aerosol Backscatter coefficient (2-WL + 1 polarisation)

MARGA

Manufacturer: Applicon

Model: 2S

Measures: Chemical Composition of water soluble ions

NO2 analyser

Manufacturer: Teledyne-API

Model: T500U

Measures: trace NO2

NOy Analyzer

Manufacturer: Teledyne-API

Model: T200U_NOy

Measures: trace NO, NO2

O3 Analyzer

Manufacturer: Teledyne-API

Model: T400

Measures: O3

Optical Particle Counter

Manufacturer: Grimm

Model: 180

Measures: Size distribution

Picarro

Manufacturer: Picarro

Model: G2401

Measures: CO2, CH4, CO, H2O

SO2 analyser

Manufacturer: Teledyne-API

Model: T100U

Measures: trace SO2

Sun Photometer

Manufacturer: CIMEL ELECTRONIQUE

Model: CE 348NE

Measures: AOD

TCCON

Manufacturer: Bruker Optik GmbH

Model: IFS 125HR

Measures: Xgas (gas = CO2, CH4, CO, N2O, H2O, HDO, HF)

TEOM

Manufacturer: Thermo Scientific

Model: 1405-DF

Measures: PM mass

TOF-PTR-MS

Manufacturer: Ionicon

Model: 4000

Measures: VOCs

VPPS 2000

Manufacturer: CAVAZZA ANNA Sas

Model: VPPS2000

Measures: Pollen & Fungal spores

Weather Station

Manufacturer: Campbell Scientific

Model: CR1000

Measures: atmospheric pressure

Weather Station

Manufacturer: Gill Instruments Ltd

Model: Option 1

Measures: Wind speed and direction

Weather Station

Manufacturer: Kipp and Zonen

Model: CMP 3

Measures: Solar irradiance

Weather Station

Manufacturer: Delta OHM

Model:

Measures: Rain intensity

Weather Station

Manufacturer: Campbell Scientific

Model: Hygrovue5

Measures: Temperature and Relative Humidity

Xact ambient metals monitor

Manufacturer: Cooper Scientific

Model: 625i

Measures: Trace Metals in ambient air
